Hermesys GryphonX™ HDPE Air Blown micro ducts are designed for Urban outdoor network and long haul telecom project. The high density PE material provides excellent mechanical protection performance to protect the air blown cable inside. The inner permanent silicon layer enables low friction performance to ensure the cable can be blown as far as possible with a very fast speed.
| Application | Applicable to fiber blowing | Min.Bend Radius | 320mm |

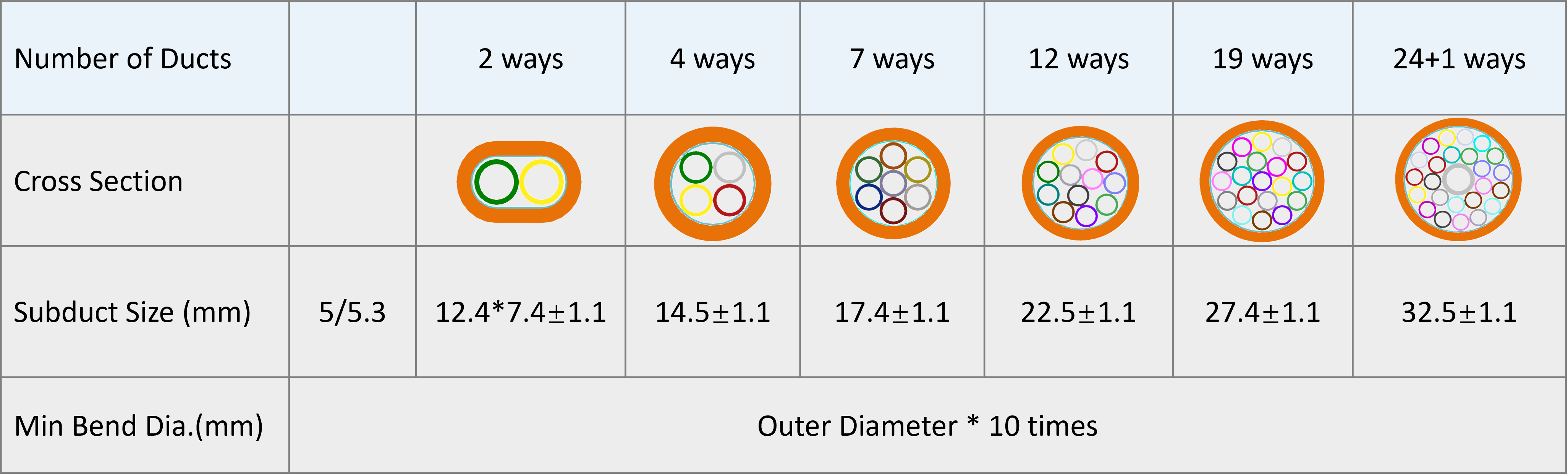

| Number of Ducts | 1/2/4/7/12/19/24+1 | Material of Ducts Sheath | HDPE/LSOH |
| Bedding Thickness (Nom.) | 1.0mm | Outer Sheath Color | Orange/HDPE ; Beige/LSOH |
| Outer Microduct Diameter | 5.0±0.1mm | Outer Sheath Thickness (Nom.) | 1.2±0.3mm |
| Outer Microduct Diameter | 3.5±0.1mm | Installation Temperature | -20˚C ~ 50˚C |
| Microduct Sheath Colour | Red, Green, Yellow, Blue&Beige | Storage Temperature | -40~70°C |
| Outer Sheath | HDPE/HDPE | Max. tensile strength | 1500N |
| Tube Ovality | ≤ 7% | The Type of Armored | Aluminum Tape |
**Bundle Dust Sheath: Available for customized colour.
