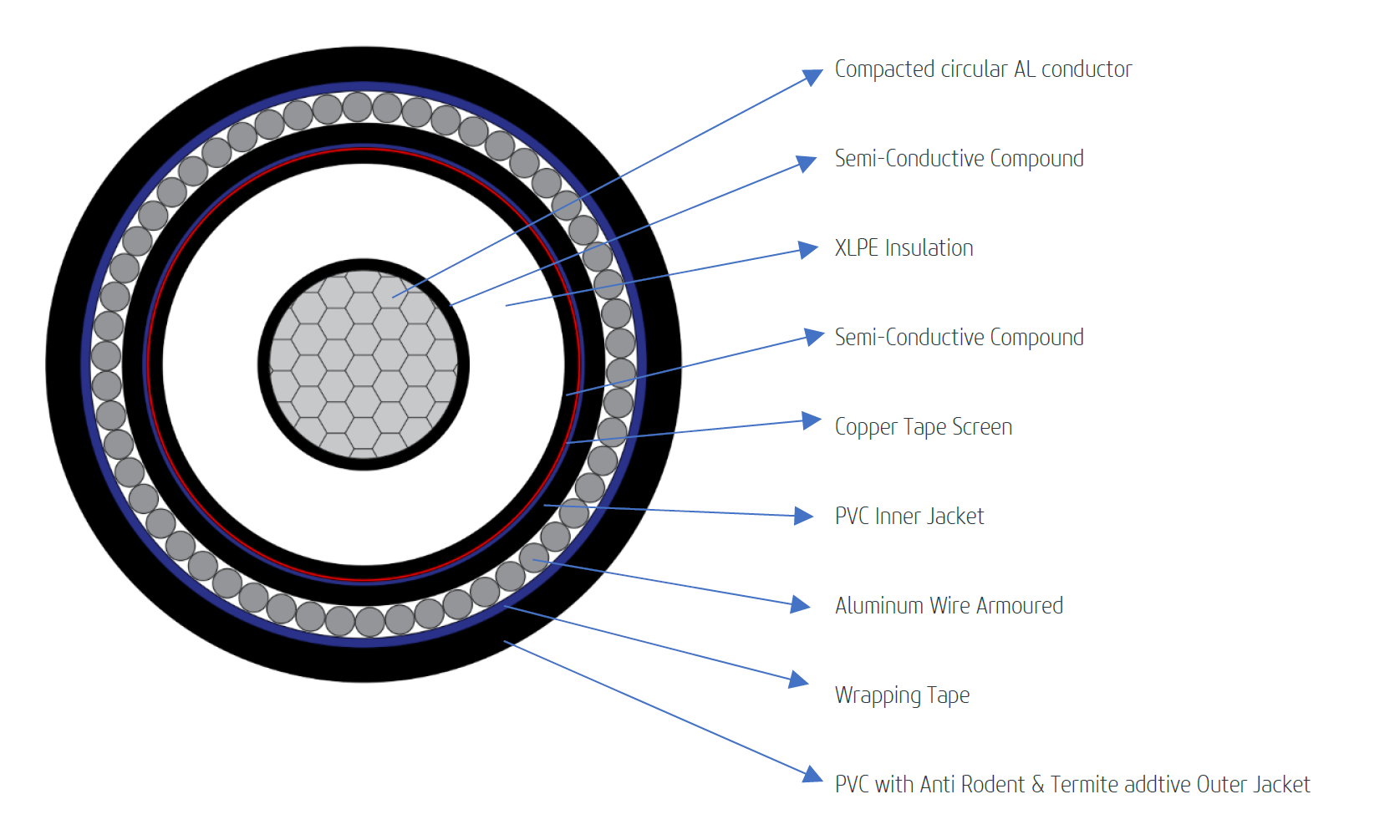

Description
Hermesys ChimeraX™ series Medium Voltage Cable is a highly reliable medium voltage power cable, featuring high-quality insulation materials and robust mechanical protection. It offers excellent resistance to temperature, voltage, corrosion, and fire, making it widely applicable in industrial, and urban distribution networks, and construction projects, ensuring the stable and safe operation of power systems.
Flame Resistant
–
Reference Standard
GB/T12706.2-2020
GB/T 6995
GB/T 3956
GB/T 3048.12
JB/T8137-2013
Specification
| Conductor Diameter (Nom.) |
5.5mm |
Conductor Material |
Annealed copper |
| Conductor Screen |
Semi-conductive compound |
Thickness of Conductor Screen (Nom.) |
0.5mm |
| Insulation |
XLPE |
Insulation (Nom.) |
5.0mm |
| Insulation Screen |
Semi-conductive compound |
Thickness of Insulation Screen (Nom.) |
0.5mm |
| Metallic Screen |
Copper tape |
Thickness of Metallic Screen (Nom.) |
1.0mm |
| Binder |
Non hygroscopic wrap |
Outer Sheath |
PE |
| Thickness of Outer Sheath (Nom.) |
2.0mm |
Overall Diameter (Nom.) |
22mm |
| Max. conductor resistance |
≤0.832 Ω/km |
Max. Continuous conductor temp |
90℃ |
| Rated voltage |
1.1kV |
Voltage test |
The cable shall be subjected to a test voltage of 17kV, held for a period of 10 min ， No breakdown shall occur |
