Features
Hermesys ChimeraX™ series LSOH FR Power Cable is a fire-resistant cable with a low-smoke zero-halogen (LSOH) outer sheath and an anti-termite additive. It ensures enhanced safety, reduced toxic emissions, and long-term durability in critical installations.
Flame Resistant
IEC 60332-1-1
IEC 60332-1-3
IEC 60332-3-22
IEC 60331-21
Reference Standard
IEC 60502-1
IEC 60754-1
IEC 60228
IEC 61034

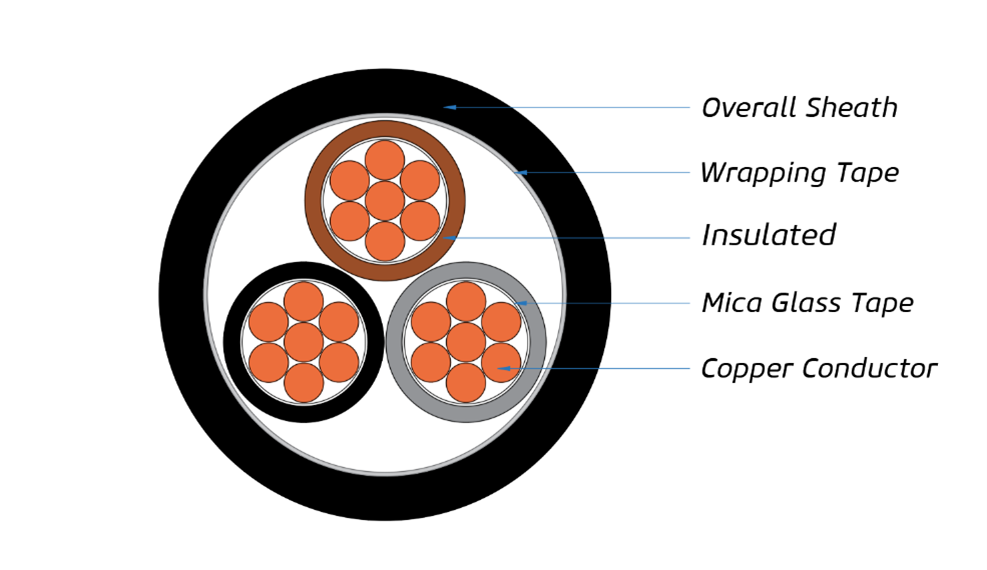

Specification
| Core No. x Cross section |
3×2.5mm²/4×16 mm² |
Conductor Material |
Class 2 Annealed stranded copper |
| Insulation |
XLPE |
Insulation (Nom.) |
4.2/7.3mm |
| Thickness of Insulation (Nom.) |
0.7mm |
Insulation Colour |
1. Brown 2. Black 3. Gray 4. Blue |
| Fireproof Layer |
Mica Glass Tape |
Thickness of Outer Sheath (Nom.) |
1.8mm |
| Outer Sheath |
LSOH with Anti-termite additive |
Overall Diameter (Nom.) |
12.8/21.5mm |
| Approx Weight.(kg/km) |
245/898 |
Final short-circuit temperature |
250℃ |
| Rated voltage |
600/1000 V |
Max. Conductor Resistance @20⁰C (Ω/km) |
7.41 (3 Core) 1.15 (4 Core) |
| Test voltage |
3. 5kVac for 5 minutes |
Min. Conductor Resistance @20⁰C (Ω/km) |
2000 |
