The Hermesys CetoX™ 1.5U Anti-Trip Vertical Rack PDU is a 32A power distribution unit that brings C13 and C19 anti-trip outlets together on one slim vertical bar. It is offered in two outlet layouts, one weighted toward standard IT loads and one balanced for high-draw equipment, so the same product family can serve very different rack populations.
Key Features and Benefits

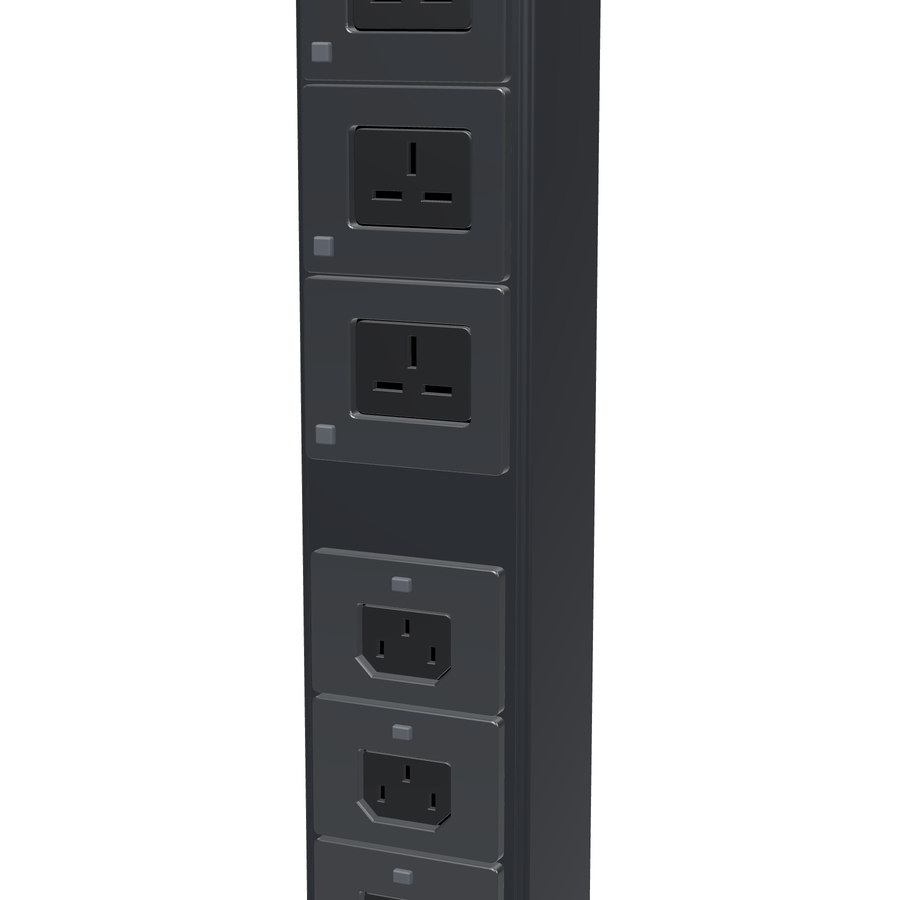

- Anti-trip outlets hold plugs firmly in place, preventing accidental disconnection from vibration, cable movement or maintenance work in a live rack
- Mixed C13 and C19 outlets let one PDU serve standard servers and switches alongside high-current devices such as blade chassis, storage arrays and GPU servers

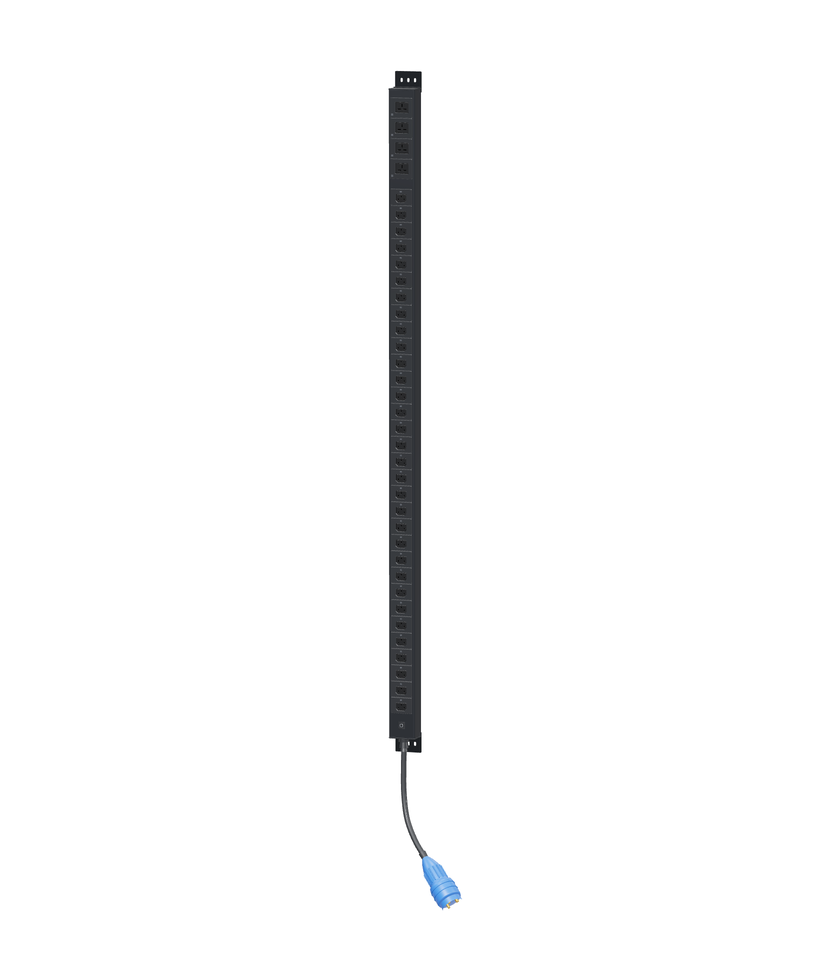

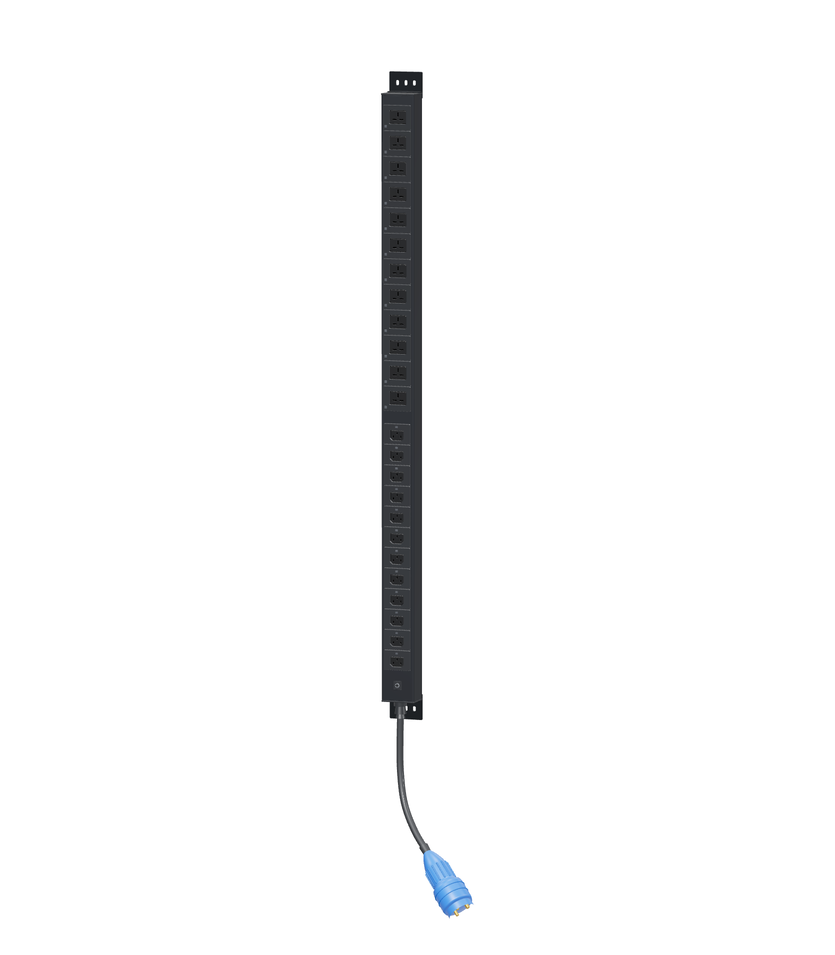

- High-density 36-outlet layout suits racks packed with 1U servers and network gear, while the balanced 24-outlet layout gives more C19 capacity for power-hungry equipment
- 32A rating on a 200–240 VAC supply provides the capacity needed for dense racks without splitting loads across multiple feeds
- Built-in lightning protection helps shield connected equipment from surges caused by lightning strikes and switching transients
- Heavy-gauge internal wiring carries the full rated current with low voltage drop and minimal heat build-up
- Aluminium alloy body gives the unit rigidity and helps dissipate heat while staying light enough for easy installation
- Vertical mounting along the side or rear of the cabinet keeps horizontal rack units free for IT equipment

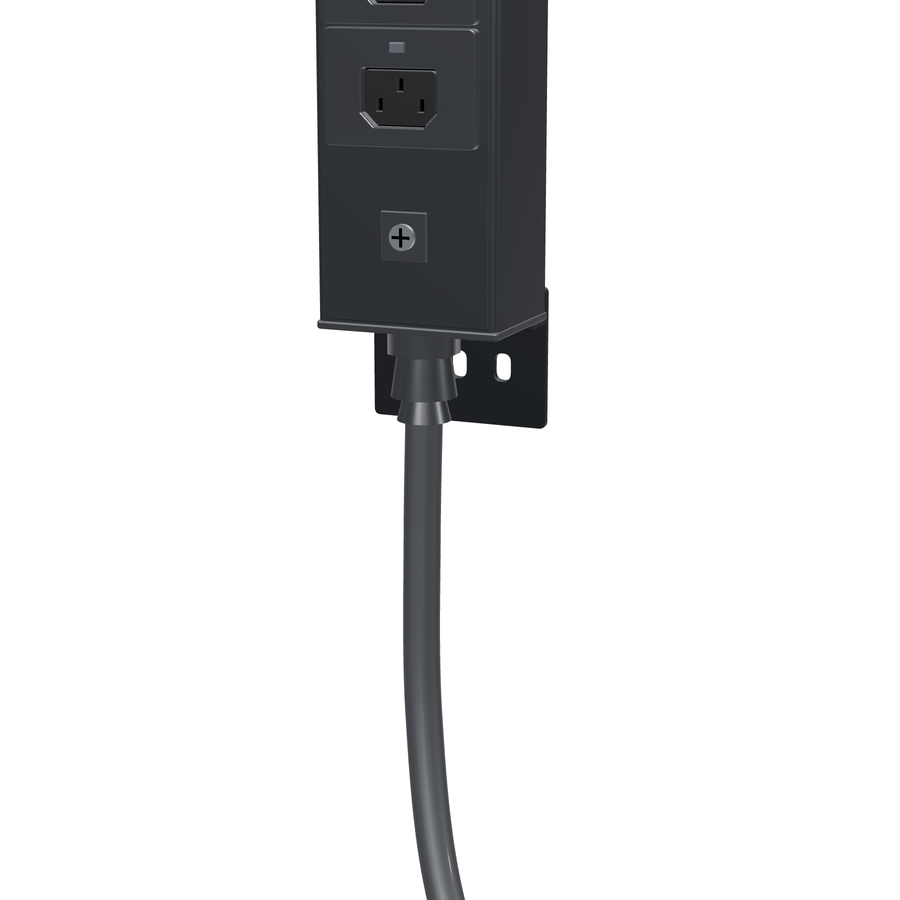

- Industrial connector input gives a secure, high-current connection to the rack’s power feed that resists accidental unplugging
Typical Applications
- Data Centers and Colocation Facilities
- High-Density Server and Storage Racks
- Blade Server and GPU Computing Deployments
- Telecom Equipment Rooms
- Enterprise Server Rooms
