| Specification | Details |
|---|---|
| Infrared Detection Distance | ≥0.5km |
| Visible Light Detection Distance | ≥0.8km |
| Resolution (Infrared) | 640×512 |
| Resolution (Visible Light) | 1920×1080 |
| Pixel Pitch (Infrared) | 12μm |
| Pixel Pitch (Visible Light) | 2.9μm |
| Direction | -120°~120° |
| Elevation Angle | -90°~90° |
| Voltage | 12V±0.5V DC |
| Product Weight | 0.12kg |
| Operating Temperature | -20°~+55°C |
| Dimension | 65×37.5×37.5mm |
| Product Part Number | Product Description |
|---|---|

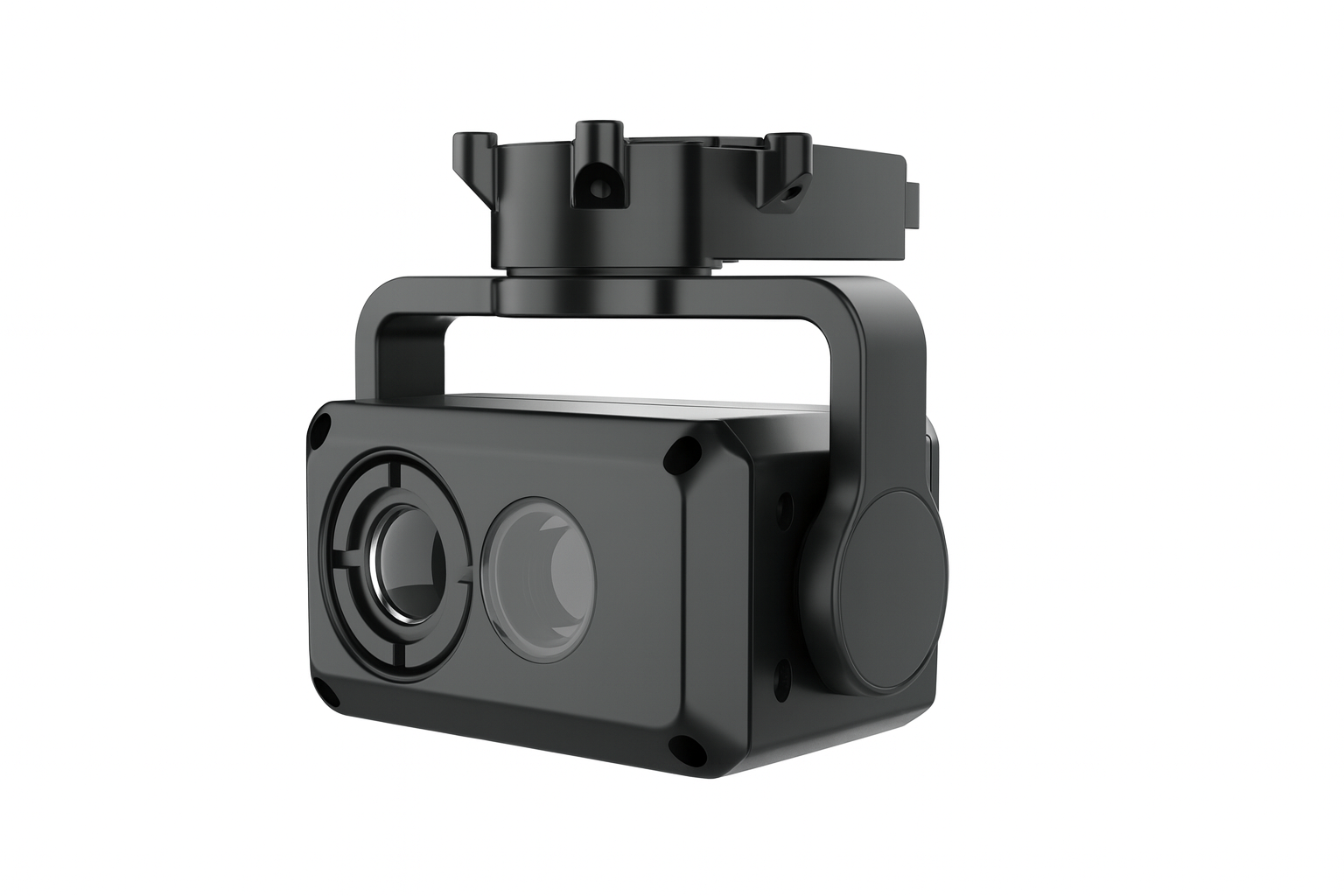

| ARE-UDC380MD | Hermesys AresX™ UDS Optoelectronic Drone Payload |
