| Specification | Details |
|---|---|
| Vertical Angle | -60° ~ +60° |
| Resolution | 640×512 |
| Pixel Pitch | 17 μm |
| Detector | 1/1.8″ CMOS |
| Lens | 12–1200 mm · 100× |
| Minimum Illumination | 0.005 Lux / F1.5 (Color); 0.0005 Lux / F1.5 (Black & White) |
| Thermal Sensitivity | ≤20 mk |
| Power Consumption | ≤200 W |
| Power Supply | AC 220V or DC 48V |
| Product Weight | 42 kg |
| Protection Level | IP66 |
| Operating Temperature | -45° ~ +70°C |
| Dimension | 550 × 550 × 995 mm |
| Product Part Number | Product Description |
|---|---|

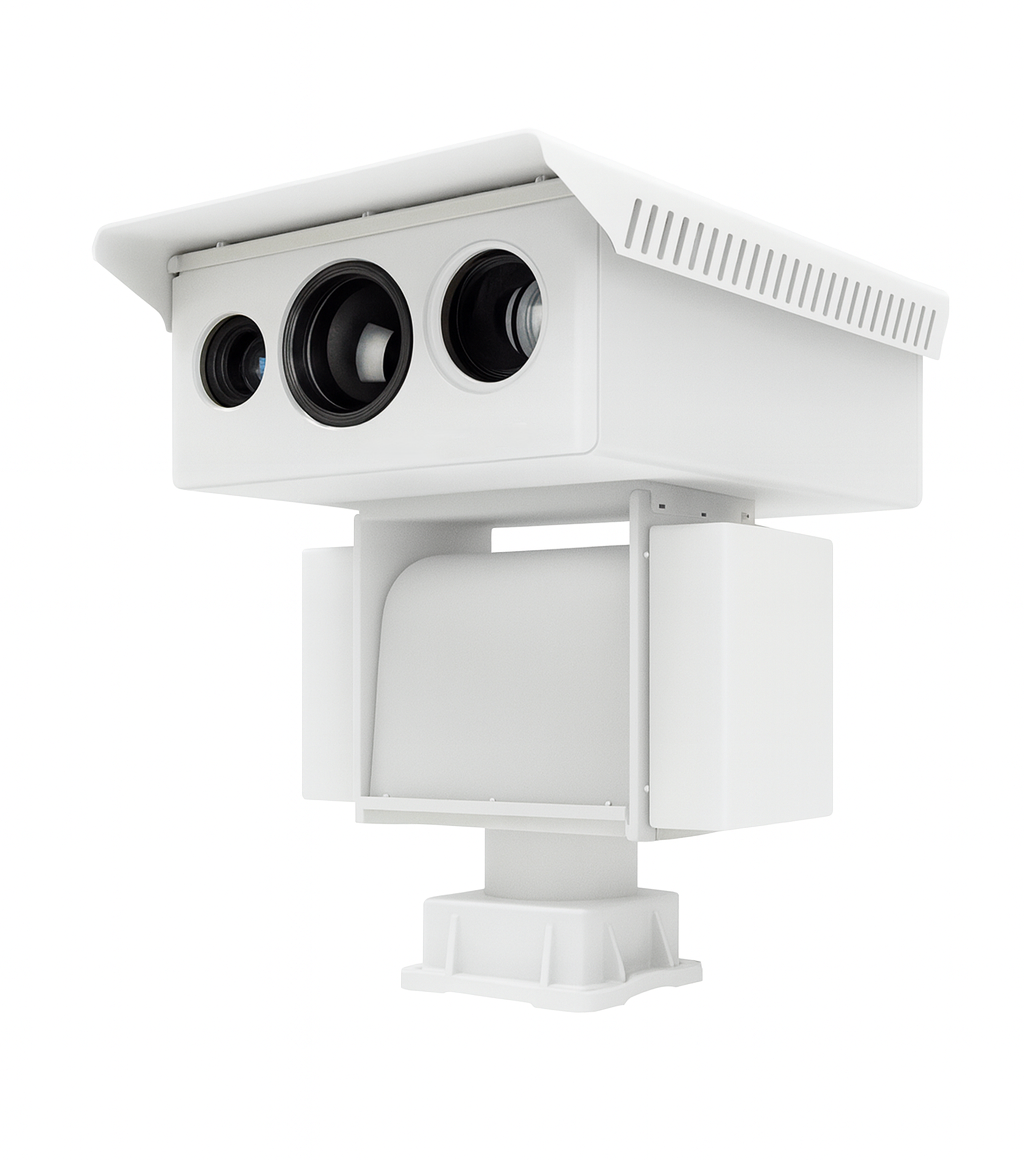

| ARE-SSC300P | Hermesys AresX™ SSS Multispectral Thermal Imaging PTZ Camera |
