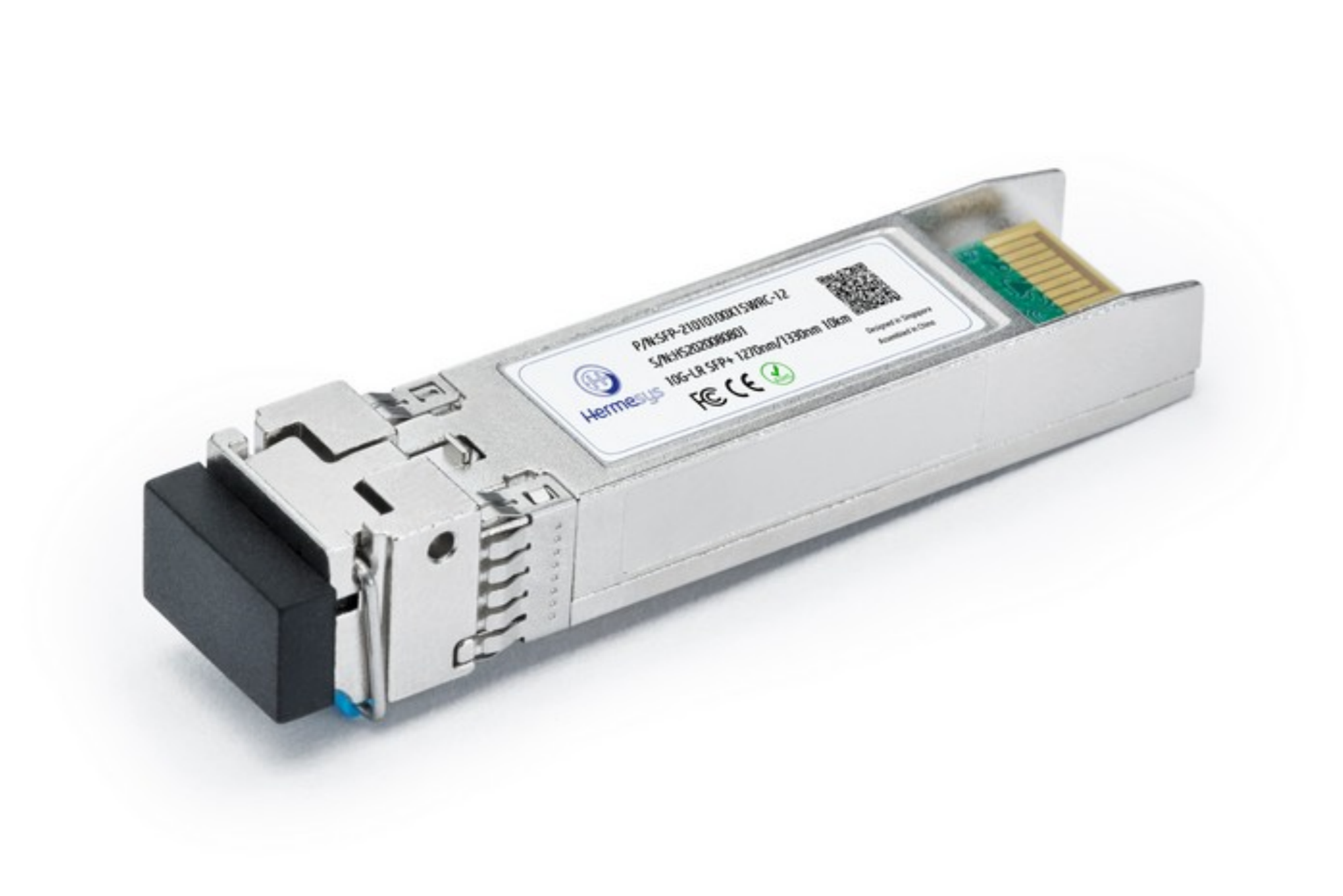

The Hermesys HydraX™ 10Gb/s 1310nm SFP+ Transceiver family is intended for 1.4/10/20/40km reach service at up to 10.3125Gb/s over 9/125 singlemode fiber, for high-speed communications equipment where low cost, extraordinary performance and reliability are essential. The receiver is PIN-TIA for the 1.4/10/20km variants and APD-TIA for the 40km variant. The device is Class I laser safety compliant.
Key Features and Benefits
- LC duplex optical interface
- Optional 1.4/10/20/40km transmission distance on 9/125 singlemode fiber
- 10.3125Gb/s data links
- +3.3V power supply
- Low DC power consumption
- Optional operating temperature range: 0°C ~ +70°C / -40°C ~ +85°C
- RoHS compliance
Typical Applications
- 10G BASE-LR/LW/ER Ethernet
- 4G Wireless
Reference Standard
- IEEE 802.3ae
- SFF-8431/8432
- SFF-8472
Technical Data
Optical Interface
LC Duplex
Fibre Type
9/125 Singlemode
Power Consumption
Low DC power consumption
Laser Safety
Class I laser safety compliant
Standards Compliance
IEEE 802.3ae, SFF-8431/8432, SFF-8472, RoHS compliant
Optical Specifications by Reach Distance
| Parameter |
1.4km |
10km |
20km |
40km |
| Transmitter Type |
FP LD |
DFB LD |
DFB LD |
DFB LD |
| Center Wavelength |
1310nm |
1310nm |
1310nm |
1310nm |
| Optical Output Power |
-8.2 ~ 0.5 dBm |
-8.2 ~ 0.5 dBm |
-5.2 ~ +3 dBm |
0 ~ +5 dBm |
| Receiver Type |
PIN/TIA |
PIN/TIA |
PIN/TIA |
APD/TIA |
| Receiver Sensitivity (Max) |
< -14.4 dBm |
< -14.4 dBm |
< -15.0 dBm |
< -18.0 dBm |
| Operating Temperature Grade |
-40°C ~ +85°C (Industrial only) |
0°C ~ +70°C (Commercial) or -40°C ~ +85°C (Industrial) |
0°C ~ +70°C (Commercial) or -40°C ~ +85°C (Industrial) |
0°C ~ +70°C (Commercial) or -40°C ~ +85°C (Industrial) |
