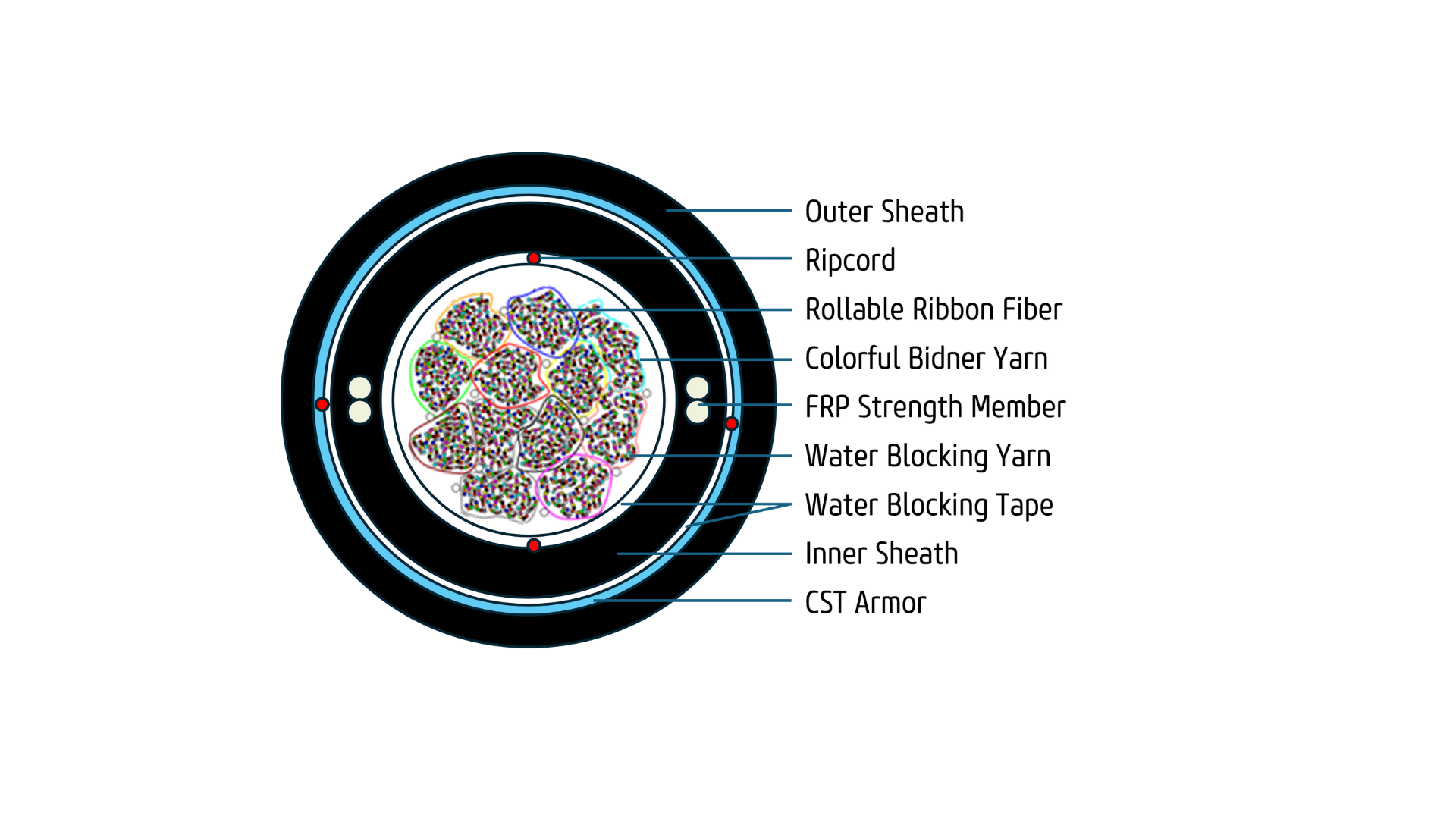

The Hermesys LadonX™ Rollable Ribbon fiber optic cable is a high-density, jelly-free cable built around 12-fiber rollable ribbons, supporting 1152 to 3456 fibers in a single armored cable. The rollable ribbon design maximizes packing density while staying compatible with mass-fusion splicing, making it well suited for high-count backbone and data center interconnects.
Key Features and Benefits
- 12-fiber rollable ribbon design with 250 µm fiber coating
- High-density fiber counts from 1152 to 3456, scalable via ribbon count (96–288)
- Jelly-free (dry) construction with water-blocking yarn and tape
- FRP strength member for a lightweight, non-metallic, corrosion-resistant build
- Corrugated steel tape (CST) armor for rodent and crush protection
- LSOH inner sheath and PE outer sheath, both black
- 4 ripcords for fast, clean sheath removal
- High tensile and crush performance — 2700 N (short-term) tensile, 2200 N/100 mm (short-term) crush
- Wide operating range from -40°C to +70°C
Typical Applications
- Structured Cabling Systems
- Indoor and Outdoor Networks
- FTTx (Fiber to the x) Deployments
- High-density data center and backbone interconnects
Reference Standard
