The Hermesys GryphonX™ 5/3.5mm LSOH Microduct is a low-smoke, halogen-free microduct built for in-building fibre networks. A permanent inner silicone layer keeps friction low, so cable can be blown further and faster. Its LSOH construction also limits flame spread and smoke output in indoor environments.
Tính Năng Và Lợi Ích Chính
- Low smoke, zero halogen (LSOH) sheath on both the microduct and bundled duct suits indoor and occupied-building routes.
- Permanent inner silicone layer supports long, fast cable-blowing runs into the microduct.

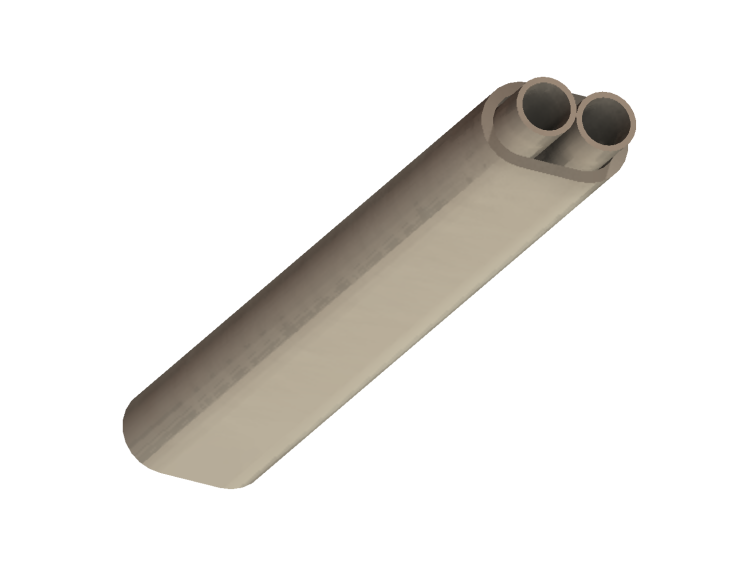

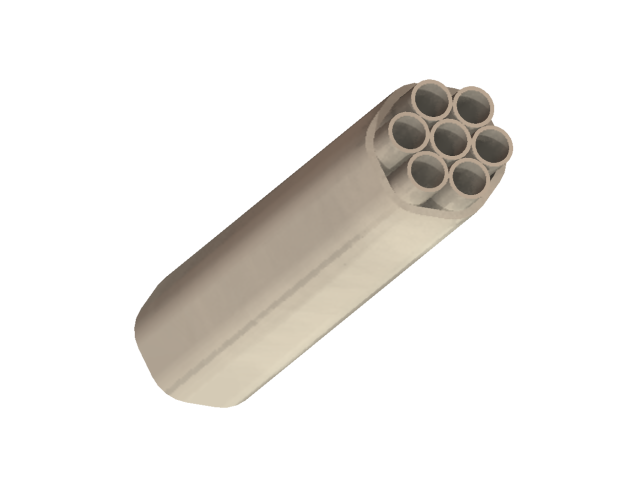

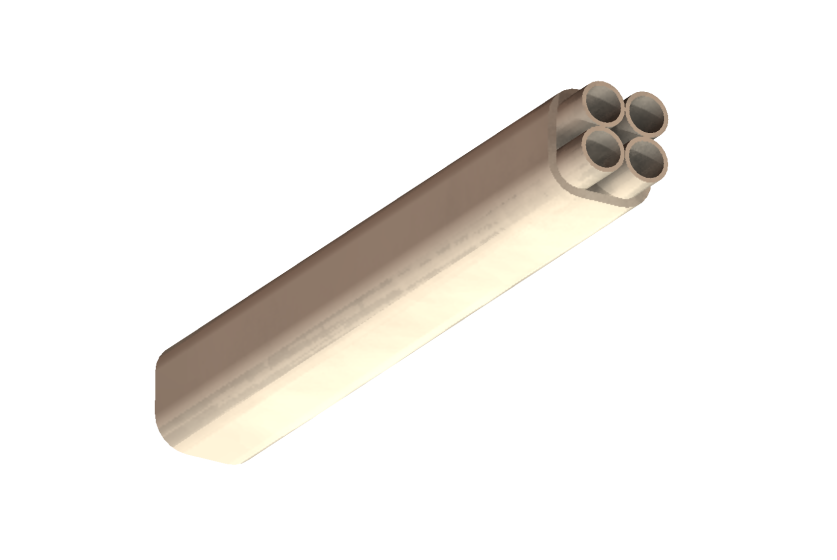

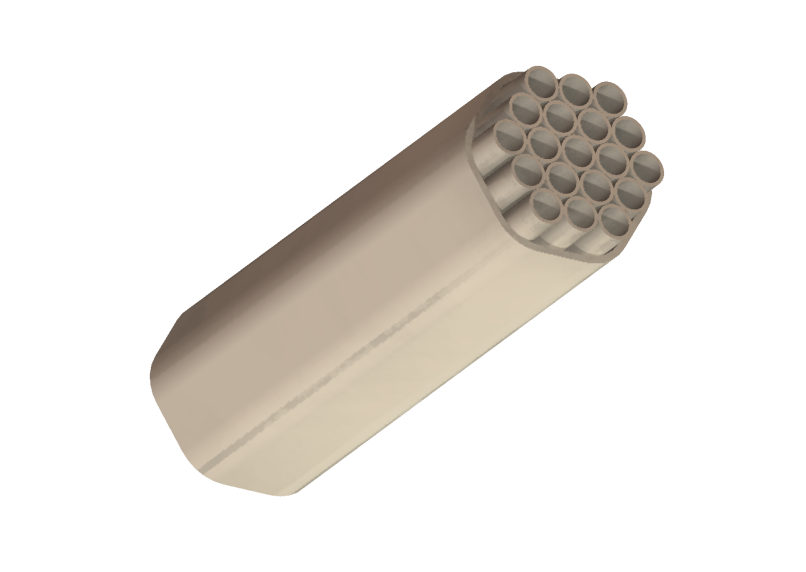

- Bundle configurations from 2 to 24+1 ways let one duct product scale from small drops to large distribution bundles.
- Tensile strength of 20-30 N/mm² and elongation at break above 400% give the duct durability during pulling and bending.
- Beige sheath colour on both the microduct and bundled duct keeps a consistent, low-visibility finish for indoor installs.
- Un-armoured, lightweight bundled sheath keeps the assembly easy to handle and install.
- Optional stripe colour and count on the bundled duct support project-specific duct identification schemes.
Ứng Dụng Điển Hình
- In-Building Fibre Networks
- Low-Smoke, Fire-Safe Duct Routes
- Air-Blown Fibre (ABF) Microduct Systems
- FTTx (Fibre to the x) Network Infrastructure
Tiêu Chuẩn Tham Chiếu
- ASTM D2122
- IEC 60794-1-2
- ASTM F2160
- ASTM D638 (Type IV)
- ASTM D1693
- ISO 2505
