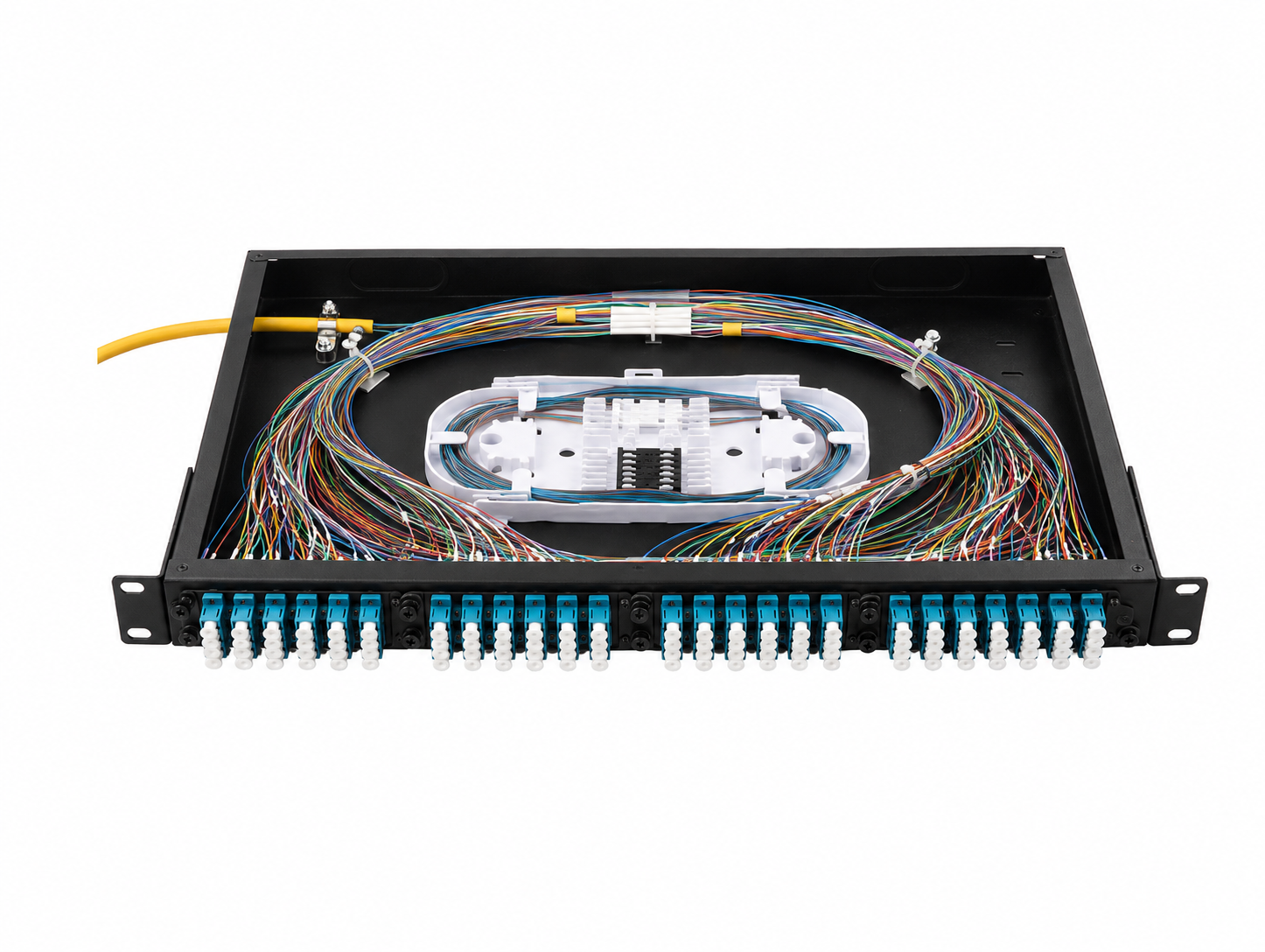

The Hermesys HydraX™ FO Patch Panel is a 1U, 4-slot high-density fiber splicing patch panel that manages up to 96 fibers in a single rack unit. Built in a lightweight aluminum alloy chassis, it supports both single-fiber and ribbon fusion splicing, giving excellent access to individual fibres for cross connection and convenient organization of fiber optic links.
Key Features and Benefits
- Suitable for both single-fibre and ribbon fusion splicing, with proper cable routing and protection
- Loads up to 4 sets of 24-core LC faceplates, for up to 96 cores in 1U
- Lightweight aluminum alloy front panel and panel body, easy to install in high-density tower racks
- Black RAL 9005 finish
- Mini faceplates assemble onto the panel easily, with up to 4 different fibre adaptor types per panel
- Manages, houses and protects splice trays, FO cable, terminations, connectors and patch cords
- Dedicated cable entry, cable fixing and cable management clips for organized routing and strain relief
Typical Applications
- Computer Networking
- Recording Studios
- Radio and Television Broadcast
- Fibre Cross-Connection and Splicing Points
Reference Standard
- IEC 60297-3-2010
- IEC 24764-2010
- TIA-942-2-2010
