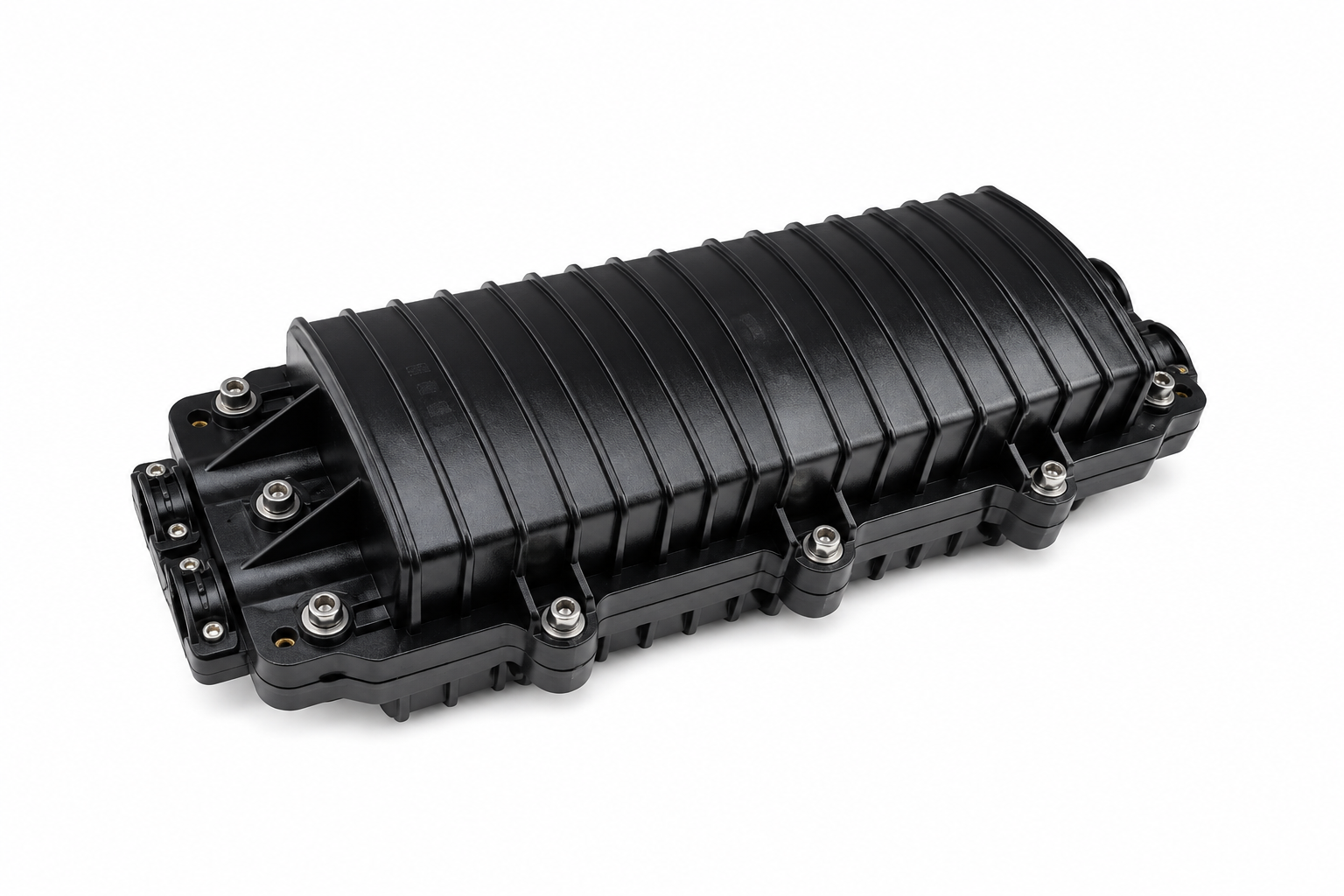

The Hermesys HydraX™ 144F IP68 Inline Fibre Optic Splice Closure is a fully rugged, waterproof fibre optic splice closure that holds up to 144 splicing points. Its mechanical locking system and half-shell design combine tight environmental sealing with easy field access, suited to underground, aerial and wall-mounted fibre network installations.
Key Features and Benefits
- Water-proof design with IP68 protection rating
- Impact-resistant to IK10, with a 100N pull force rating

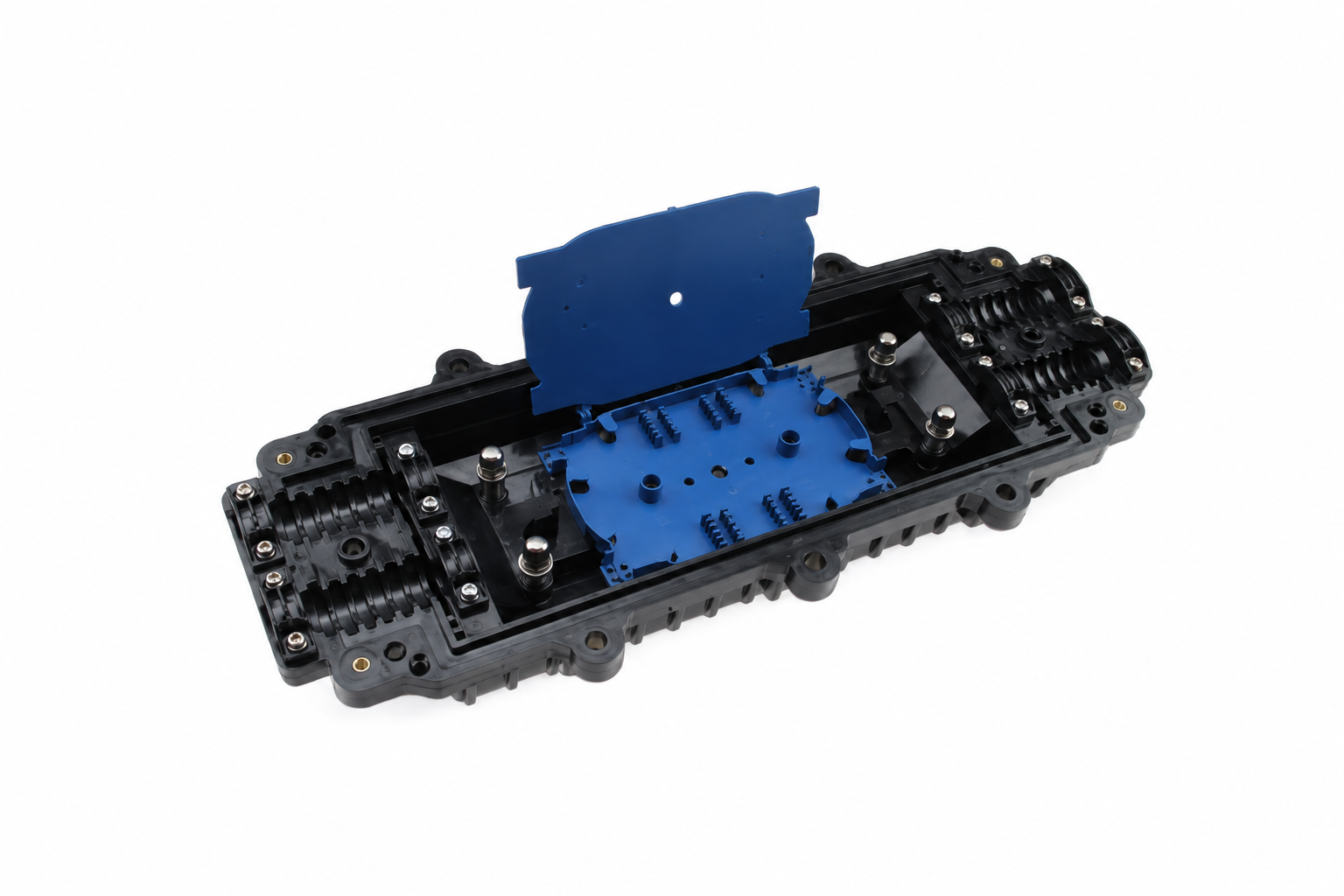

- Half-shell design for easy access and a tight water-proof seal
- All-stainless-steel metal plate with anti-rusting bolts and nuts
- Maximum splice capacity of 144 fibres (6 trays x 24F)
- Suitable for fusion splicing or mechanical splicing
- Mechanical sealing with thermoplastic rubber protection tube
- 4 cable entrances (5-23mm), supporting 2 cables in from each side
- Polycarbonate (strengthened PC) housing material
- Operating temperature range of -40°C to +65°C
- Nominal weight of 2.3 kg
Typical Applications
- Direct Buried Installation
- Pole-Mounted Installation
- Wall-Mounted Installation
- Manhole and Handhole Installation
- FTTH Access Layer
