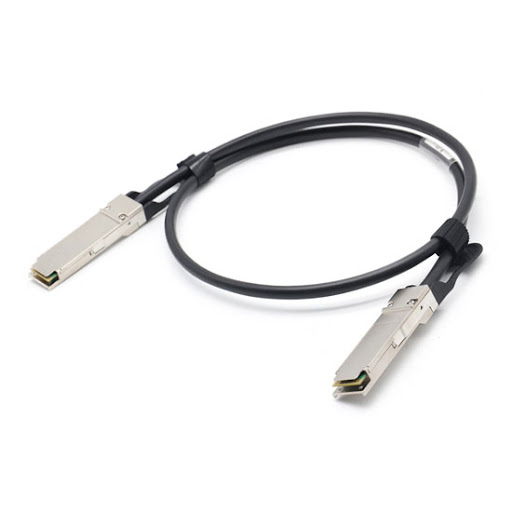

Hermesys HydraX™ 100G QSFP28 Direct Attach Copper Cable provides a cost-effective, low-latency connection between network devices equipped with QSFP28 ports. The passive cable assembly combines two hot-pluggable QSFP28 connectors with shielded Twinax copper cable, eliminating the need for separate optical transceivers and fiber patch cords.
Four full-duplex electrical lanes operate at up to 25 Gb/s per lane, delivering an aggregate data rate of 100 Gb/s. Low insertion loss and crosstalk support reliable short-reach connections in high-density data center environments. Standard lengths from 0.5 m to 5 m are available, with conductor sizes ranging from 26 to 30 AWG. Cable length, conductor size and compatible coding can be configured according to deployment requirements.
Key Features and Benefits
- Supports aggregate data rates up to 100 Gb/s
- Four full-duplex lanes operating at up to 25 Gb/s per lane
- Passive QSFP28-to-QSFP28 copper cable assembly
- Hot-pluggable QSFP28 interfaces
- Low insertion loss and low crosstalk
- Shielded Twinax copper cable construction
- Available in standard lengths from 0.5 m to 5 m
- Conductor sizes from 26 to 30 AWG
- Supports high-speed differential signal transmission
- Operating temperature from 0°C to +70°C
- Custom cable length, conductor size and compatible coding available
- RoHS compliant
Typical Applications
- 100 Gigabit Ethernet short-reach connections
- InfiniBand EDR systems
- Data center top-of-rack connections
- High-density switch-to-switch interconnections
- Switch-to-server and storage connections
- Storage area networks and network-attached storage
- High-bandwidth routers and network appliances
Design Reference and Compliance
- IEEE 802.3bj
- SFF-8636 management interface
- SFF-8661 QSFP28 connector interface
- SFF-8432 cable retention reference
- InfiniBand architecture
- EIA-364 connector test procedures
- RoHS compliant
