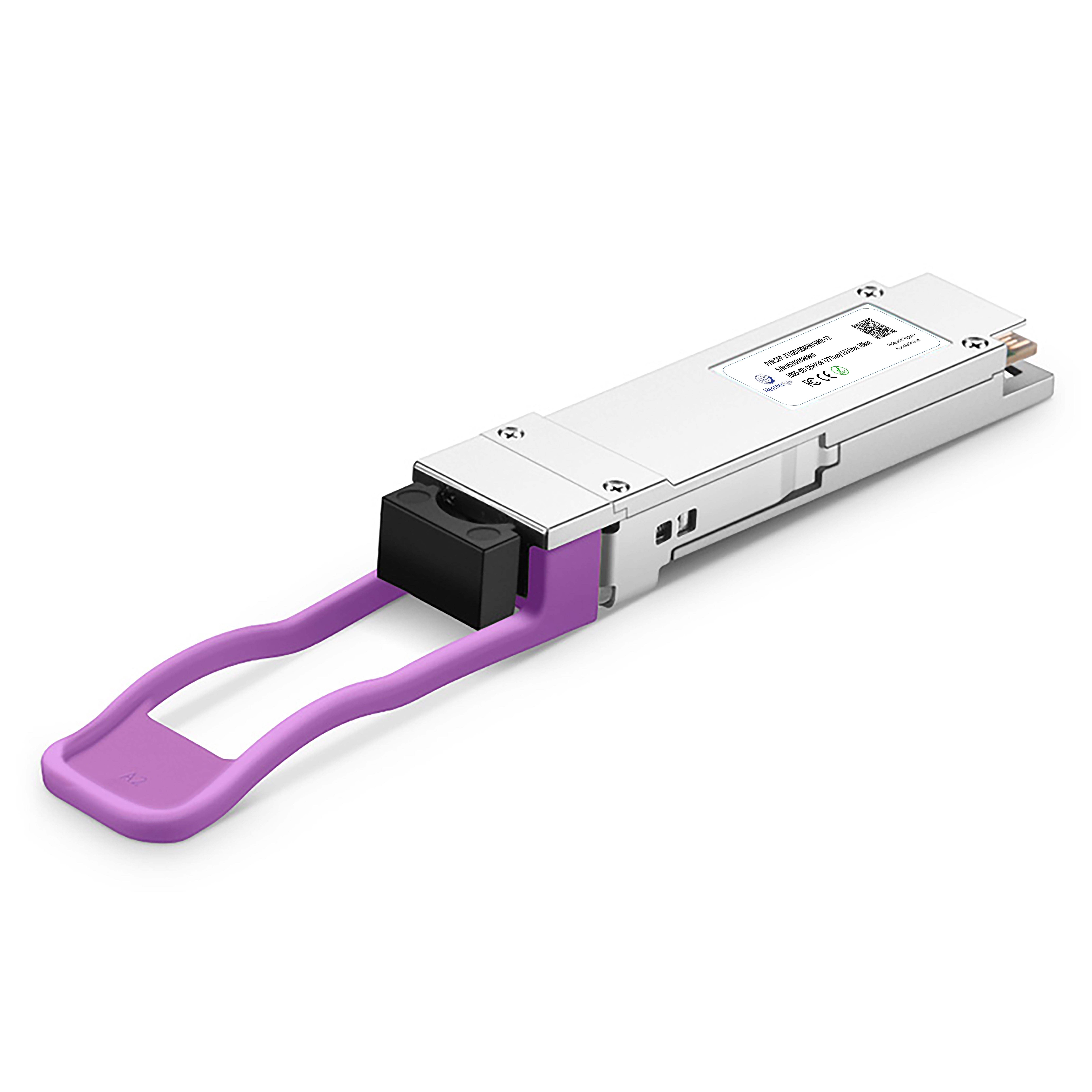

The Hermesys HydraX™ 100G QSFP28 BiDi LR optical transceiver delivers 100 Gigabit Ethernet transmission over a single strand of standard single-mode fiber. With a reach of up to 10km, it helps preserve fiber capacity in data centre, 5G and enterprise network deployments.
The module uses complementary 1271nm and 1331nm transmit and receive wavelengths. Two opposite-wavelength modules must be installed as a matched pair to establish a bidirectional optical link.
Key Features and Benefits
- Supports 100GBASE-LR BiDi applications
- Single-fiber bidirectional transmission
- Maximum reach of 10km over single-mode fiber
- 103.125 to 106.25 Gbit/s PAM4 optical signaling
- Available as Tx 1271nm/Rx 1331nm and Tx 1331nm/Rx 1271nm

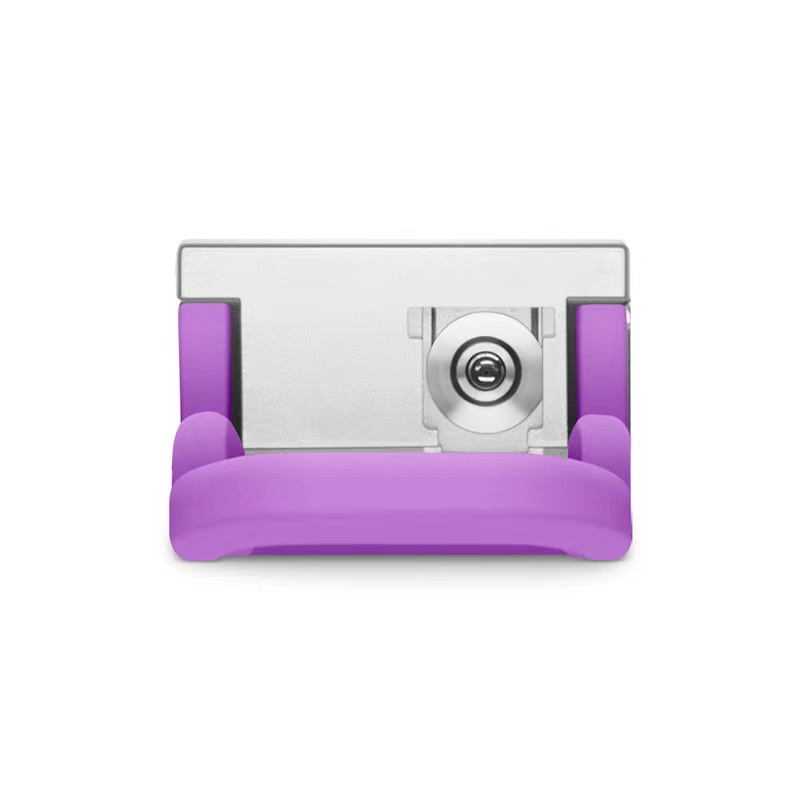

- Simplex LC optical interface
- EML transmitter and PIN receiver
- 4 × 25.78 Gbit/s CAUI-4 electrical interface
- Integrated digital diagnostic monitoring
- Maximum power consumption of 4.5W
- Hot-pluggable QSFP28 form factor
- Operating case temperature from 0°C to 70°C
Ứng Dụng
- 100G single-fiber Ethernet links
- Data centre interconnections
- 5G midhaul and fronthaul networks
- Enterprise and campus network backbones
- Network upgrades with limited fiber availability
Design Reference and Compliance
- IEEE 802.3cu
- SFF-8636
- SFF-8679
- EU Directive 2015/863/EU
