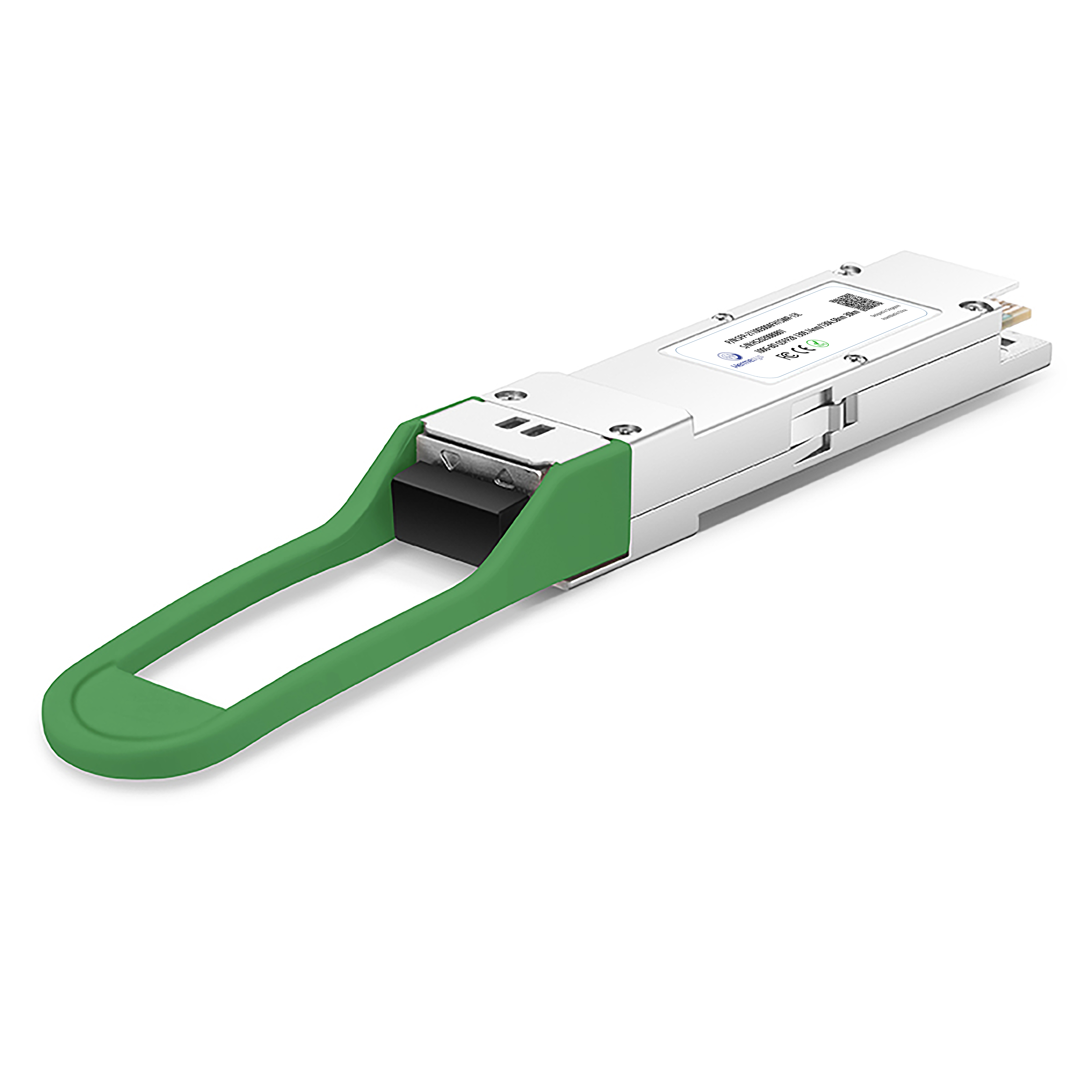

The Hermesys HydraX™ 100G QSFP28 BiDi ER optical transceiver extends 100 Gigabit Ethernet connectivity up to 30km over a single strand of single-mode fiber. It provides an efficient long-reach solution for metro, telecom and 5G transport networks where fiber availability is limited. Complementary 1304.58nm and 1309.14nm modules transmit and receive in opposite directions through a simplex LC interface. The EML transmitter and high-sensitivity APD receiver support reliable long-distance operation within a hot-pluggable QSFP28 form factor.
Key Features and Benefits
- Supports 100GBASE-ER1-30 BiDi applications
- Single optical lane with 106.25 Gbit/s PAM4 signaling
- Maximum reach of 30km over single-mode fiber
- Paired 1304.58nm and 1309.14nm wavelength configurations
- Simplex LC interface uses one fiber strand
- EML transmitter and APD receiver
- 4 × 25.78 Gbit/s CAUI-4 NRZ electrical interface
- Integrated digital diagnostic monitoring
- Maximum power consumption of 4.5W
- Single 3.3V power supply
- Hot-pluggable QSFP28 form factor
- Operating case temperature from 0°C to 70°C
Typical Applications
- 100G metro Ethernet connections
- Telecom aggregation and transport networks
- 5G midhaul and backhaul infrastructure
- Long-reach data centre interconnections
- Single-fiber network expansion
Design Reference and Compliance
- IEEE 802.3cu
- SFF-8636
- SFF-8679
- EU Directive 2015/863/EU
